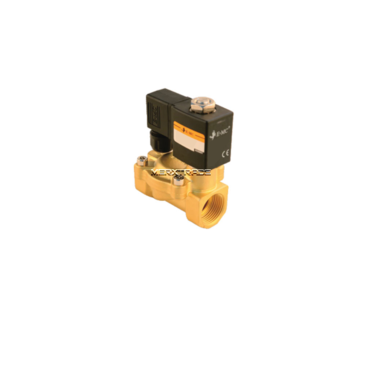

Solenoid valve 2/2-way Brass/NBR NC normaly closed 230V AC thread BSPP
| Model: | Normaly closed | Material body: | Brass |
| Connection: | Thread BSPP | Material inner parts: | Brass / stainless steel |
| Voltage: | 230V AC | Material seals: | NBR |
| Operating pressure: | see tabel below. | Material pilot: | Plastic |
| Temperature range: | -10°C to +80°C | Protection class: | IP65 |
| Installation position: | With upright magnets | Brand: | E-CM |
| Media: Compressed air, neutral gases, water, neutral low-viscosity media, other media on request | |||
| Size: | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1.1/4" | 1.1/2" | 2" |
| Pressure bar: | 0-13 | 0-13 | 0,5-16 | 0,5-16 | 0,5-16 | 0,5-16 | 0,5-16 | 0,5-16 | 0,5-16 |
| kv value l/min: | 3,2 | 3,2 | 64 | 64 | 108 | 171 | 313 | 427 | 684 |
Warning:
For opening or closing, servo-controlled valves require a pressure difference between the valve inlet and valve outlet. The pressure difference is given as minimum pressure. There is a pressure compensation in the valve, resulting that no or little medium is used at the valve outlet, the valve will no longer function (it opens or closes unreliably).
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | ELP00NCE2N |
| Body material | Brass |
| Seat | NBR |
